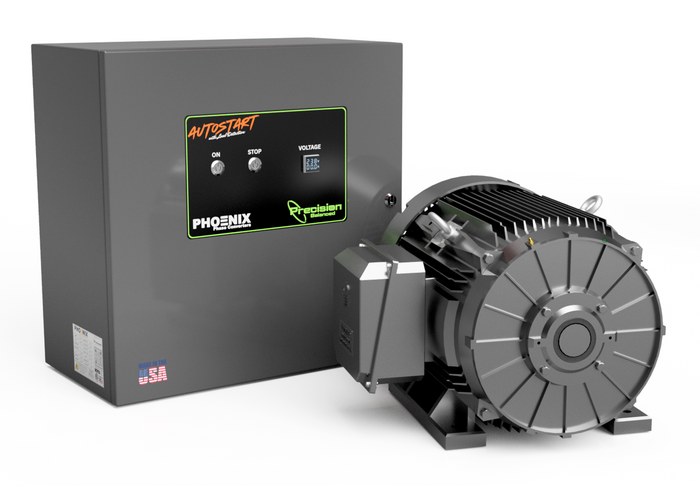

3 HP Autostart Rotary Phase Converter - GP3ASL

$1,109.98

In StockIn StockOut of stock
Out of stock

american expressapple paydiscovergoogle paymasterpaypalshopify payvisa

CLICK HERE FOR HELP WITH SIZING THE RIGHT CONVERTER

  • Rated for any environment, indoor/outdoor.
  • Designed to work for voltage-sensitive equipment.
  • INPUT: 208-250V - 50/60 hz Single Phase
  • OUTPUT 208-250V - 50/60 hz Three Phase
  • Download the manual below for, Dimensions, Size, Weight, Spec Sheet, and Wiring Diagram
  • Includes Manual Start and Stop with a built-in contactor, and a Voltage Meter Display
  • Load detection to automatically start when it detects a load and the factory setting to turn off in 20 mins when no more load is detected.
Our Patented design will turn the phase converter on and off by itself, or manually keep it on.
this is perfect for unmanned locations, air compressors, air conditioners, irrigation systems, pumps, or simply for the convenience!

DOWNLOAD MANUAL

FLAT-RATE $120.00 in the US 48 states.

Expedited Shipping

FAST SHIPPING!!

Idler Motor will arrive by freight truck, the panel will arrive by FedEx

If Ordered by 2PM


Our Best Phase Converter Yet!



The 15 HP Digital Rotary Phase Converter GPX15L is the most reliable, efficient, and quiet system on the market today. This digital phase converter includes patented technology that boasts Bluetooth, WIFI, and an Internet Capable Computer. This new unit saves you time, money, and hassle. This rotary phase converter will only run when your equipment needs power, and will standby waiting for a load again. Since this unit has AutoStart and AutoOff, you will be working without any background noise. In addition, you won’t be wasting any money on just letting the system sit idle.


You can set the rotary phase converter to shut off in a manner that fits your needs. Or, you can set this converter to remain running at all times. The team at Phoenix Phase Converters understands that you may be operating on a busy schedule and cannot afford downtime. So, we made this the most robust rotary phase converter for sale on the market. The computer that is integrated with the converter will monitor any potential hazards before they happen and correct itself to ensure you will never be left in the dark again. The 15 HP Digital Rotary Phase Converter GPX15L is able to operate without the computer. This is the most intelligent phase converter for sale today that get smarter as Phoenix Phase Converters progresses in new firmware.

Our Converters

Generator/Idler

The Generator & Idler that is available with the 15 HP Digital Rotary Phase Converter GPX15L includes a cast iron frame, corrosion resistant hardware, stainless steel connection plate, and cast iron conduit box. The generator that is used with this digital phase converter for sale also features over sized bearings, cast Iron inner & outer bearing retainers, and vacuum impregnated windings. The 4140 Steel Shaft Rotor Generator is made to perform in a wide range of environments and we prepare them for the task. From the cast-iron frame and dual over-sized bearings and seals, this generator is ready for the toughest environments.


Intelligent Technology

You are able monitor the performance of the 15 HP Digital Rotary Phase Converter with the 7" HD Touch Screen Display and intuitive digital interface. This digital phase converter for sale makes it easy to monitor all your voltages, while the software will do it for you too. The software is designed to protect your rotary phase converter and itself too, It will monitor against high voltages and spikes, voltage drops or overloads, and even tell you the issue is and how to fix it! Making it the most robust and dependable phase converter for sale on the market today.


Auto Shut-off

Set it and forget it, move the slider from minutes to hours, or the end of the day to when you want the 15 HP Digital Rotary Phase Converter to shut off by itself. Maybe you have a machine that needs to run a job for hours after you are done with the day. If this is the case, our digital phase converters for sale allow you to set a future time you want it to be activated. Simply program a schedule into the phase converter prior to leaving for the day.


Computer on board

The 15 HP Digital Rotary Phase Converter GPX15L features a computer that provides you with endless possibilities. The digital phase converter for sale will run with or without the computer, but when attached, you will have on-screen controls to the phase converter including auto shut-off, voltage meters on and three phases, lockout passcode, over-voltage or low voltage detection. This rotary phase converter also features Bluetooth and wireless access to the internet. You can even control this with your cell phone.


We use a terminal block with the 15 HP Digital Rotary Phase Converter that is a convenient way to manage your power distribution needs. It is rated for copper or aluminum conductors and is tin-plated. This power block also includes safety covers on larger converters. The power block that is used with the 15 HP Digital Rotary Phase Converter GPX15L provides an easy connection and is non-corrosive or oversized. We developed this block with the consumer in mind, making your installation simple.


Panel Enclosure

The 15 HP Digital Rotary Phase Converter GPX15L features a panel design that includes heavy-gauge steel and is powder-coated. This digital phase converter for sale also includes durable hinges and exceeds NEMA 3R standards. The system is easy to open for maintenance and installation. The removable top and bottom panels that can be replaced or removed for easier installation.


Capacitor Holders

No glue or adhesive mess. The holders are very secure and place no stress on the capacitors. Makes it clean and easy if they need replacing. Even with the built-in technology these capacitors should last a lifetime and never need servicing.

We are neat freaks! Not a rotary phase converter leaves our facility, unless it is absolutely perfect. The 15 HP Digital Rotary Phase Converter GPX15L features no crossed wires, secure tied downs, and are hand built. Each phase converter for sale goes through a four level inspection process right before it is packaged and shipped. Heavy gauge wire and thick insulation, resistant to heat and moisture.


Totally Enclosed, Fan Cooled

The generator that is available with this rotary phase converter include a cast iron frame, corrosion resistant hardware, stainless steel connection plate, cast iron conduit box, over sized bearings, cast Iron inner & outer bearing retainers, vacuum impregnated windings. The 4140 Steel Shaft Rotor Generator is made to perform in a wide range of environments and we prepare them for the task. From the cast-iron frame and dual oversized bearings and seals, this generator is ready for the toughest environments.


Product Videos

Installation Video - Rotary Phase Converter with Push Button Controls from Phoenix Phase Converters on Vimeo.

Why our Generators are Superior to our Competition

Sizing

PL-5 BEST SIZED FOR: pl5
Best Performance Single Motor Start: 2.5HP
Recommended 3 Phase Sizing: 7 Amps
Total Combined Load: Please Call for Sizing(877) 545-2926

EasyMotor Loads up to3HPTable Saw, Drill Press, Milling Machine
MediumLoads up to2.5HPBelt Sander, Grinder, Mixer
HardLoads up to2.0HPGearhead Lathe, Dust Collector, Fan
Very HardLoads up to1.5HP (Consider Smart-Boost) Air-Compressor, Submersible Pump

PL-5 SPECS(Download Spec Sheet): pl5 ul-5 ul5

Minimum Single Phase Input Circuit: 15 Amps

Single Phase Input Voltage: 208 245 Volts

3 Phase Output Voltage: 208 245 (Based on Input)

Voltage Balance: 2 5%

Idler HP Size: 5

Model: PL-5
