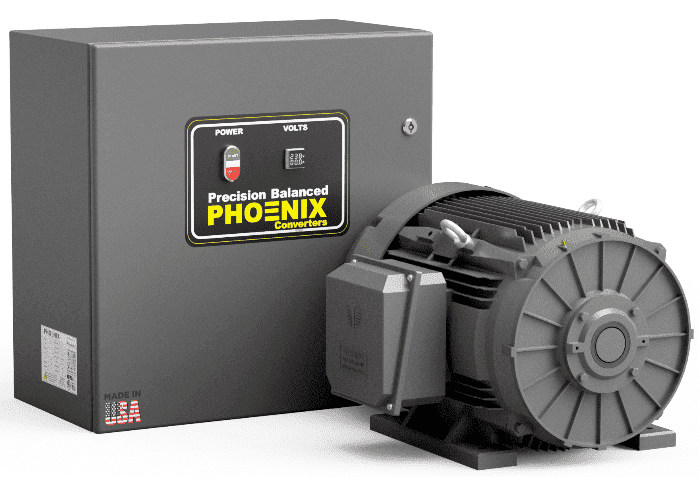

Convertidor rotativo de fase de 5 HP - Convertidor monofásico a trifásico GP5PL

$937.00

En existenciasEn stockSin existencias
Sin existencias

american expressapple paydescubrirgoogle paymaestropaypalshopify payvisa
General Specifications Single Phase Specs      Three phase Specs                        Options
HP 5Voltage Input230 VACVoltage Output230 VACStart and StopW/ Built-In ContactorYES
KW 3.3Motor Load Breaker
Minimum Size
10Maximum Output
Inductive Load Amps
14Voltmeter DisplayYES
KVA 4.43Motor Load Breaker
Maximum Size
30Maximum Output
Resistive Amps
7AutoStart/AutoOffNo, add-on available
HZ 50/60Service Amps
Minimum Size
15Voltage Balancing+/- 2%Wireless Remote ON/OFFNo, add-on available
Panel EnclosureNEMA4
Indoor/Outdoor
Hinged
Single Phase Line
Input Wire Size
8Minimum Wire Size
Idler/Generator
10GPX Energy Monitor Cloud System ON/OFF and TimesNo, add-on available
Motor Cast Iron
TEFC
Start and Stop
W/ Built-In Contactor

No
Largest Spindle
Motor Start
2.5
Frame184TLargest Compressor
Motor Start
2
Idler Weight110.25Total Combined
Horsepower Run
5
Electrical Panel Weight18 lbs
Enclosure Certifications UL 508A
(CSA C22.2No. 14-13.), TUV, CE
Panel ColorGray White(RAL7035)
Panel Dimensions 20 x 12 x 8
Panel Mounting Wall Mount

THE MOST ROBUST AND RELIABLE PHASE CONVERTER ON THE MARKET

Our standard 5 HP Rotary Phase Converter has most of our competitors' upgrades.

Control Panel

Nema 4 Indoor/Outdoor Rate

At Phoenix Phase Converters we use the best components that last a lifetime. The 5 HP rotary phase converter -  It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather.  An intuitive standard voltage meter display to monitor your generated phase.The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.

Generator/Idler

Totally Enclosed Fan Cooled

Standard Feature - TEFC (Toatlly Enclosed Fan Cooled Generator and Cast Iron Frame.
Our Highly Reliable Motors. At Phoenix Phase Converters we use the best components that last a lifetime. The 5 HP rotary phase converter - GP5PL single phase to three phase converter features a totally enclosed fan cooled and cast iron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. Watch this video to learn more. (video link)

Stock in 12 Warehouses

We have 12 warehouses across the USA, so you can get it FAST! Phoenix Phase Converters can get your phase converter from one of our warehouses to your door, residential or business address as fast as Next Day in most cases!

Our Customers Come Back

We guarantee here at Phoenix Phase Converters, you will always talk to a highly experience sales and tech support customer care, we are always available, and can answer any questions for you any time of the day or week.

Highest Standards - Quality

Two generations of hands-on experience. The 5 HP rotary phase converter - GP5PL features oversized components, cast iron frames, and totally enclosed fan cooled idler/generators. Built from years of customer real-world experiences, to last a lifetime of a maintenance free phase converter.

Section
Drop element here

Phase Converter will Automatically Start when a load is detected, Factory Settings is set to 20 minutes after to shut down by itself when the load is gone, this works great for CNC machines, Air Compressor, A/C units, irrigation, and pumps, ect.

GPX Phase Converter

GPX Series

Cloud Based Controls via WIFI

GPX Series will allow for you to have total control of the phase converter with built in timers to turn the phase converter on and off with a 7 day scheduling, and 24 hour time setting. Also with a built-in energy monitor for the converter and everything connected to it. You can even control and monitor it from any device connected to the internet from anywhere in the world.

Single Phase 230 Volts input with 230 volts and 460 volts output, some equipment are only set to run on 460 volts 3 phase, while other machines can run on 230 volts 3 phase. this will allow you to use both even at the same time.  208 volt output also available. Ask about our LinkBox.

ModelEasyMediumHardVery HardResistive AmpsKVACNC Spindle MotorPrice
GP32.521.5141.61.5$624.36
GP53321.572.92.5789.51
GP77532.5114.53.51085.00
GP10865315651599.18
GP151087.552087.52057.23
GP201512107.52511102647.18
GP25201512103013102963.43
GP30252015103715153481.17
GP40302520155021204210.30
GP50403025206125255485.79
GP60504030257230306883.34
GP756050403010029.6358074.28
GP1007560504012237.35010465.37
GP120100756050148606013254.34
GP1501251007060162727016140.23

Built with quality and precision like no other.

At Phoenix Phase Converters we use custom made components that last a lifetime. The 5 HP rotary phase converter - GP5PL single phase to three phase converter with an oversized distribution block (the Start and Stop button with built-in contactor is optional).

Protect your investment

All Phoenix Phase Converter come with a NEMA 4 IP66 Rated Enclosure, keep water, dust, oil out, works perfect for outdoors or indoors, especially great for wood working, metal working shops, or any dirty environments

Standard Features

See why TEFC vs ODP is better, the choice is easy.
