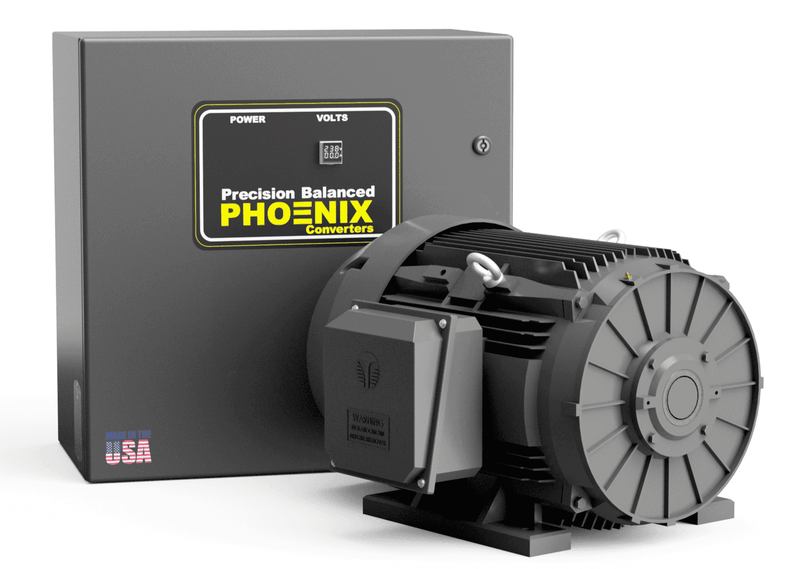

7.5 HP Rotary Phase Converter - GP7NL Single Phase to Three Phase Converter

$1,085.00

In StockIn StockOut of stock
Out of stock

american expressapple paydiscovergoogle paymasterpaypalshopify payvisa

CLICK... Read more

CLICK HERE FOR HELP WITH SIZING THE RIGHT CONVERTER

  • Rated for any environment, indoor/outdoor.
  • Designed to work for voltage-sensitive equipment.
  • INPUT: 208-250V - 50/60 hz Single Phase
  • OUTPUT 208-250V - 50/60 hz Three Phase
  • Download the manual below for, Dimensions, Size, Weight, Spec Sheet, and Wiring Diagram
  • Voltage meter display

This unit requires a disconnect or breaker to turn ON/OFF.


GP7PL - Includes a built-mag start and a Start and Start Button. PL models have the option to have wireless remotes. Click below to add this to your converter.




GP7ASL - Includes Manual Start and Stop Button also AutoStart and AutoOff with load detection. (turn on and off by its self.)



Flat Rate Shipping

Expedited Shipping

FAST SHIPPING!!

Idler Motor will arrive by freight truck, the panel will arrive by FedEx.

If Ordered by 2PM



MOST POPULAR
GP7PL - 7.5 HP Rotary Phase Converter with Push Button Controls 230V Input/Output
GP7ASL - 7.5 HP Rotary Phase Converter with AutoStart and AutoOff and load detection
230V Input/Output
GP-7-NL-LH - 7.5 HP Rotary Phase Converter without Controls INPUT 230V, OUTPUT 460V
GP-7-PL-LH - 7.5 HP Rotary Phase Converter with Controls INPUT 230V, OUTPUT 460V


Options:
  • Wireless Remotes
  • Start and Stop Button with built-in Contactor
  • Programmable Timer ON/OFF
  • Load Detection OFF
  • Load Detection Auto Start and OFF
  • AutoLink Box to Transformer
  • AutoLink Box to Pair to another Phase Converter
  • Wifi or Cloud-Based Energy Phase Meter Includes Timer, Cloud-Base ON/OFF, Voltage Meter, KW per hour, and Cost


Standard Features:
  • TEFC - Totally Enclosed Fan Cooled Generator and Cast Iron Generator
  • NEMA 4 Panel Enclosure with Locking Hinged Door
  • Voltage Meter Display
  • Precision Balanced Voltage
This GP7NL does not have the Start and Stop Button with a built-in contactor.

The start and stop button is a convenient way to turn the phase converter ON/OFF, also if you ever lose power, your phase converter and your equipment will stay in the off position when the power is restored for safety. GP7NL does have the start and stop button feature, you will need to use a disconnect or breaker to turn it on and off.



Custom Design
We can custom design to fit your application, just ask our Tech Support team.





Stock

12 Warehouses

We have 12 warehouses across the USA, so you can get it FAST! Phoenix Phase Converters can get your phase converter from one of our warehouses to your door, residential or business address as fast as Next Day in most cases!

Guarantee

Our Customers Come Back

We guarantee here at Phoenix Phase Converters, you will always talk to a highly experience sales and tech support customer care, we are always available, and can answer any questions for you any time of the day or week.

Quality

Highest Standards

Our team has two generations of hands-on experience. The 5 HP rotary phase converter - GP5NL features oversized components, cast iron frames, and a totally enclosed fan cooled idler/generator. The phase converter is built from years of customer real-world experiences and is designed to last a lifetime with minimal maintenance.




Our Highly Reliable Motors

At Phoenix Phase Converters we use the best components that last a lifetime. The 7.5 HP rotary phase converter - GP7NL single phase to three phase converter features a totally enclosed fan cooled and cast iron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. Watch this video to learn more. (video link)


Not many people know the equipment they might need in the future, not to worry, you can always change the size of the phase converter by adding to it. For example, you can add a 7.5 HP or larger HP and change the size of the converter to 17.5 or larger HP. Grow while your business grows. The customer demonstrates how he connected two 50 HP Rotary Phase Converters using our AutoLink Box, this is with our last generation phase converters, click on the video below to watch.

Nema 4R Enclosure


Enclosure Picture 7.5 HP Rotary Phase Converter

Specially Designed Terminal Block for easy and secure connections, oversized for any applications.

The 7.5 HP rotary phase converter - GP7NL features a galvanized backplate, proprietary designed and patent-pending capacitor holder, and a wire management system. The phase converter for sale includes easy connections and oversized components to last a lifetime.

An intuitive standard voltage meter display to monitor your generated phase. The 7.5 HP rotary phase converter - GP7NL single phase to three phase converter features an optional Start and Stop Button with a built-in Contactor. It is convenient to turn the phase converter On and Off without the use of a disconnect. The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.

An innovative carbon steel electrical enclosure with an Ip65 rating and a wall mount phase converter panel. The system features a sturdy construction, reinforced Lock and Hinge, Waterproof Sealing Strip, and convenient installation. The 7.5 HP rotary phase converter - GP7NL is designed to be used in any harsh environments and indoor or outdoor applications. The circuits are protected from liquid, corrosion, dust, and debris.




CLICK HERE FOR HELP WITH SIZING THE RIGHT CONVERTER

  • Rated for any environment, indoor/outdoor.
  • Designed to work for voltage-sensitive equipment.
  • INPUT: 208-250V - 50/60 hz Single Phase
  • OUTPUT 208-250V - 50/60 hz Three Phase
  • Download the manual for, Dimensions, Size, Weight, Spec Sheet, and Wiring Diagram
  • Voltage meter display

This unit does not includes a Start and Stop Button with a Built-in Contactor





Wire and Breaker Size Guide
230 Volt Models Only
Idler Horsepower
3
5
7.5
10
15
20
25
30
40
50
60
75
100
Minimum Breaker Size
10
15
20
20
30
40
40
50
60
80
100
125
150
Maximum Breaker Size
25
30
40
40
80
100
125
150
200
250
300
350
400
Single Phase Wire Size
10
8
8
6
4
4
2
2
1/0
2/0
3/0
4/0
300
Idler Moter Wire Size
10
10
10
8
8
6
4
3
3
2
1
1/0
2/0
