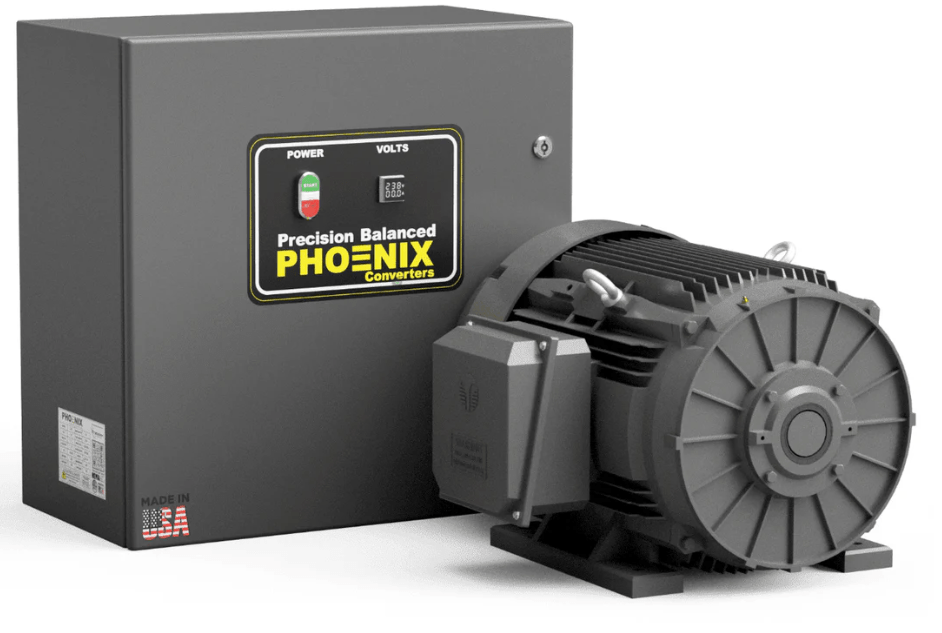

PHOENIX PHASE CONVERTER
Learn more > Buy >
| MODEL (SELECT) | Starting Load HP | Total Load HP | Max Amps | Min Breaker Size | Idle Power | Weight & Dimensions | Price (SELECT) | Product Page (SELECT) | Datasheet (SELECT) |
|---|---|---|---|---|---|---|---|---|---|
| GP3 | 1.5 | 3 | 9 | 10 amps | $.04/hr | Motor 18x12x12 94 LBS Panel 12x12x4 18 LBS | 630.00 | Learn More | DOWNLOAD |
| 2.5 | 5 | 15 | 10 amps | $.04/hr | Motor 20x12x12 110 LBS Panel 12x12x4 18 LBS | 799.00 | Learn More | DOWNLOAD | |
| GP7 | 3.5 | 7.5 | 21 | 15 amps | $.07/hr | Motor 20x12x12 158 LBS Panel 12x12x4 18 LBS | 1185.00 | Learn More | DOWNLOAD |
| GP10 | 5 | 10 | 29 | 20 amps | $.08/hr | Motor 20x12x12 181 LBS Panel 12x12x4 26 LBS | 1611.84 | Learn More | DOWNLOAD |
| GP15 | 7.5 | 15 | 41 | 30 amps | $.10/hr | Motor 20x12x12 330 LBS Panel 12x12x4 37 LBS | 2073.60 | Learn More | DOWNLOAD |
| GP20 | 10 | 20 | 52 | 40 amps | $.14/hr | Motor 20x12x12 331 LBS Panel 12x12x4 35 LBS | 2645.30 | Learn More | DOWNLOAD |
| 12.5 | 25 | 64 | 50 amps | $.16/hr | Motor 20x12x12 350 LBS Panel 12x12x4 37 LBS | 2935.11 | Learn More | DOWNLOAD | |
| GP30 | 15 | 30 | 80 | 60 amps | $.20/hr | Motor 20x12x12 396 LBS Panel 12x12x4 45 LBS | 3481.17 | Learn More | DOWNLOAD |
| GP40 | 20 | 40 | 102 | 80 amps | $.27/hr | Motor 20x12x12 539 LBS. Panel 12x12x4 51 LBS | 4421.00 | Learn More | DOWNLOAD |
| GP50 | 25 | 50 | 130 | 80 amps | $.33/hr | Motor 20x12x12 600 LBS Panel 12x12x4 57 LBS | 5529.60 | Learn More | DOWNLOAD |
| GP60 | 30 | 60 | 149 | 100 amps | $.40/hr | Motor 20x12x12 728 LBS Panel 12x12x4 78 LBS | 6756.28 | Learn More | DOWNLOAD |
| GP75 | 35 | 75 | 210 | 125 amps | $.47/hr | Motor 20x12x12 873 LBS Panel 12x12x4 80 LBS | 8138.88 | Learn More | DOWNLOAD |
| GP100 | 50 | 100 | 254 | 150 amps | $.54/hr | Motor 18x18x28 1120 LBS Panel 26x26x12 98 LBS | 9901.67 | Learn More | DOWNLOAD |
The Most Robust And Reliable Phase Converter On The Market
Our standard features are most of our competitors' upgrades.
Control Panel
Nema 4 Indoor/Outdoor Rate
At Phoenix Phase Converters we use the best components that last a lifetime. The Phoenix Phase Converter is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors.
In addition, the phase converter is designed to be utilized in cold or hot weather. An intuitive standard voltage meter display to monitor your generated phase.The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.
Generator / IdlerStandard Feature - TEFC (Toatlly Enclosed Fan Cooled Generator and Cast Iron Frame.Our Highly Reliable Motors. At Phoenix Phase Converters we use the best components that last a lifetime. Our Phoenix Rotary Phase Converter. single phase to three phase converter features a totally enclosed fan cooled and cast iron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors.In addition, the phase converter is designed to be utilized in cold or hot weather.
Totally Enclosed Fan Cooled
Standard Feature - TEFC (Totally Enclosed Fan Cooled Generator) and Cast Iron Frame.
Our Highly Reliable Motors. At Phoenix Phase Converters we use the best components that last a lifetime. The Phoenix Rotary Phase Converter, single phase to three phase converter features a totally enclosed fan cooled and cast iron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors.
In addition, the phase converter is designed to be utilized in cold or hot weather.
Optional Features
Most Advanced Useful Features
Options:
- Wireless Remotes
- Without Start and Stop Button with built-in Contactor
- Programmable Timer ON/OFF
- Load Detection OFF
- Load Detection Auto Start and OFF
- 460 Volt output and AutoLink Box to Transformer
- AutoLink Box to Pair to another Phase Converter
- Voltage drop and surge protector
Stock in 12 Warehouses
We have 12 warehouses across the USA, so you can get it FAST! Phoenix Phase Converters can get your phase converter from one of our warehouses to your door, residential or business address as fast as Next Day in most cases!
Our Customers Come Back
We guarantee here at Phoenix Phase Converters, you will always talk to a highly experience sales and tech support customer care, we are always available, and can answer any questions for you any time of the day or week.
Highest Standards Precision Balanced Voltage - Nema 4 Enclosure
Two generations of hands-on experience. The Phoenix Rotary Phase Converter features oversized components, cast iron frames, and totally enclosed fan cooled idler/generators. Built from years of customer real-world experiences, to last a lifetime of a maintenance free life time of use.
Autostart Patented Technology.
Phase Converter will Automatically Start when a load is detected, Factory Settings is set to 20 minutes after to shut down by itself when the load is gone, this works great for CNC machines, Air Compressor, A/C units, irrigation, and pumps, ect.

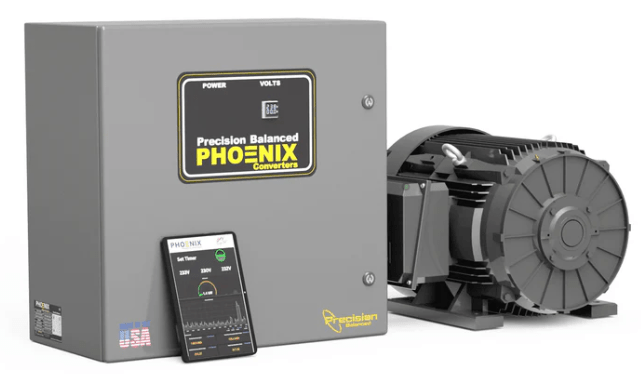

GPX Series Cloud Based Controls via WIFI
GPX Series will allow for you to have total control of the phase converter with built in timers to turn the phase converter on and off with a 7 day scheduling, and 24 hour time setting. Also with a built-in energy monitor for the converter and everything connected to it. You can even control and monitor it from any device connected to the internet from anywhere in the world.
460V Output 230v Single Phase Input - 460V Three phase Output
Single Phase 230 Volts input with 230 volts and 460 volts output, some equipment are only set to run on 460 volts 3 phase, while other machines can run on 230 volts 3 phase. this will allow you to use both even at the same time. 208 volt output also available. Ask about our LinkBox.
BUILT WITH QUALITY AND PRECISION LIKE NO OTHER.
At Phoenix Phase Converters we use custom made components that last a lifetime. The Phoenix Phase Converter single phase to three phase converter with an oversized distribution block (the Start and Stop button with built-in contactor is optional).
PROTECT YOUR INVESTMENT
All Phoenix Phase Converter come with a NEMA 4 IP66 Enclosure, keep water, dust, oil out, works perfect for outdoors or indoors, especially great for wood working, metal working shops, or any dirty environments
