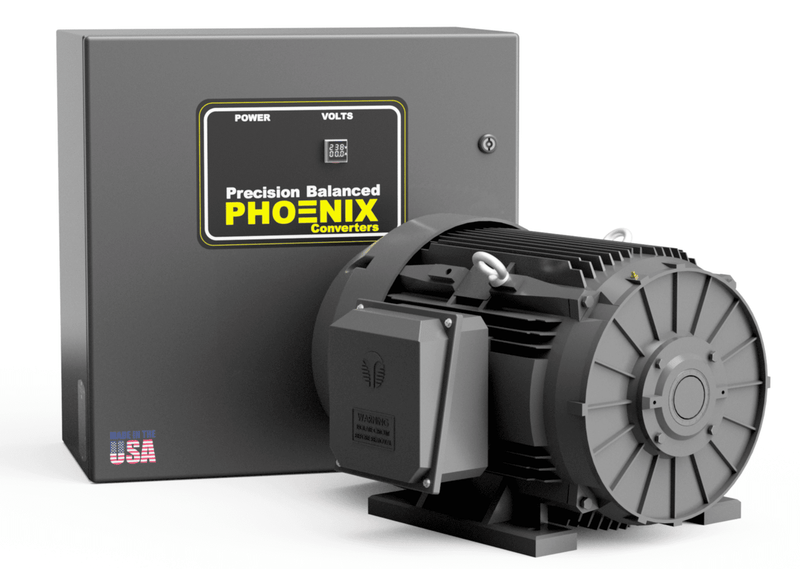

Convertidor rotatorio de fase de 100 HP - GP100NL Monofásico a trifásico

$10,198.72

En existenciasEn stockSin existencias
Sin existencias

american expressapple paydescubrirgoogle paymaestropaypalshopify payvisa

Control Panel

At Phoenix Phase Converters we use the best components that last a lifetime. The GP100NL - 100 HP rotary phase converter is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. An intuitive standard voltage meter display to monitor your generated phase. The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.

Screenshot 2024-07-22 at 5.18.32 PM.png__PID:bb0e5e10-6758-436a-b340-aa56c34c2018
screenshot_2024-06-18_at_10856_pm_7b1ba2b4-248a-4a57-8a43-ef16c7a8dba7__PID:b4b118f2-6bf2-4301-9b82-abbe0efdec9e

Generator/Idler

Standard Feature TEFC (Totally Enclosed Fan Cooled) Generator and Cast Iron Frame. Our Highly Reliable Motors: At Phoenix Phase Converters we use the best components that last a lifetime. The 100 HP rotary phase converter - GP100NL single phase to three phase converter features a totally enclosed fan cooled and castiron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, andoutdoors. The phase converter is designed to be utilized in cold or hot weather. Watch the video below to learn more.

motorexplodedview_90687748-4535-4041-808c-6d2d11c53966__PID:9eefd695-0fed-44a2-917c-4992db059ec1

More on what makes TEFC different then ODP.

If any component is found to be defective within the warrantyperiod, Phoenix Phase Converters will either repair or replace it (atour discretion) at no cost. Warranty services for the control panelmust be conducted exclusively at a Phoenix Phase Convertersauthorized facility. Click below to read more.

Screenshot 2024-07-22 at 11.27.48 AM.png__PID:6e204efa-afe7-4336-950d-7529a3287107

At Phoenix Phase Converters, we strive to ensure your completesatisfaction with our products. If for any reason you need to return a product, please review our return policy belowReturn Eligibility:- Only sealed, unopened packages are eligible for return.- Returns must be initiated within 90 days from the date of purchase. Click below to read more.

Screenshot 2024-07-22 at 11.31.08 AM.png__PID:4efaafe7-f336-450d-b529-a3287107b325
LOAD TYPEEQUIPMENT TO USE ON BUT NOT LIMITED TO
EASY LOAD 75 HP Drill Press, Milling Machine, Saw Motors.
MEDIUM LOAD 60 HP Mixer, Disc Sander, Band Saw, Meat Grinder, Compactor, Hoist.
HARD LOAD50 HP Lathe, Wide Belt Sander, Brake, Shear, Hoist, Hydraulic Pump, Pumps, Granite Saw.
VERY HARD30 HP Air Compressor, Blower, Vacuums, Cryo Chamber.
CNC SPINDLE50 HP Spindle Motor and all other small motors on the CNC Equipment.
RESISTIVE LOAD 105 AMPS, Ovens, Welders, Battery Chargers, Transmitters.
A/C - FREEZERS40 HP or 580 Locked Rotor Amps (LRA)
General Specifications Single Phase Specs      Three phase Specs                        Options
HP 100Voltage Input230 VACVoltage Output230 VACStart and StopW/ Built-In ContactorNo, add-on available
KW 75Motor Load Breaker
Minimum Size
150Maximum Output
Inductive Load Amps
227Voltmeter DisplayYES
KVA 87.21Motor Load Breaker
Maximum Size
400Maximum Output
Resistive Amps
135AutoStart/AutoOffNo, add-on available
HZ 50/60Breaker Type
Motor LoadVoltage Balancing+/- 2%Wireless Remote ON/OFFNo, add-on available
Panel EnclosureNEMA4
Indoor/Outdoor
Hinged
Single Phase Line
Input Wire Size
300MCMMinimum Wire Size
Idler/Generator
2/0GPX Energy Monitor Cloud System ON/OFF and TimesNo, add-on available
Motor Cast Iron
TEFC
Start and Stop
W/ Built-In Contactor
NoLargest Spindle
Motor Start
50
Frame405TLargest Compressor
Motor Start
40
Idler Weight1120Total Combined
Horsepower Run
100
Electrical Panel Weight98 lbs
Enclosure Certifications UL 508A
(CSA C22.2No. 14-13.), TUV, CE
Panel ColorGray White(RAL7035)
Panel Dimensions 26 x 12 x 26
Motor Dimensions18 x 18 x 28

THE MOST ROBUST AND RELIABLE PHASE CONVERTER ON THE MARKET

Control Panel

Nema 4 Indoor/Outdoor Rate

At Phoenix Phase Converters we use the best components that last a lifetime. The 100 HP rotary phase converter -  It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather.  An intuitive standard voltage meter display to monitor your generated phase.The rotary phase converter is engineered with a NEMA 4 enclosure to ensure it is durable in a variety of commercial environments.

Generator/Idler

Totally Enclosed Fan Cooled

Standard Feature - TEFC (Toatlly Enclosed Fan Cooled Generator and Cast Iron Frame.
Our Highly Reliable Motors. At Phoenix Phase Converters we use the best components that last a lifetime. The 100 HP rotary phase converter - GP100NL single phase to three phase converter features a totally enclosed fan cooled and cast iron frame motor. It is sealed from any outside environment and is made to be used in a metal shop, woodshop, and outdoors. In addition, the phase converter is designed to be utilized in cold or hot weather. Watch this video to learn more. (video link)

Optional Features

Most Advanced Useful Features

- Wireless Remotes
- Start and Stop Button with built-in Contactor
- Programmable Timer ON/OFF
- Load Detection OFF
- Load Detection Auto Start and OFF
- AutoLink Box to Transformer 460 Volts
- AutoLink Box to Pair to another Phase Converter
- Wifi or Cloud-Based Energy Phase Meter Includes Timer, Cloud-Base ON/OFF, Voltage Meter, KW per hour, and Cost. Starts at 100 HP and above sizes.

Stock in 12 Warehouses

We have 12 warehouses across the USA, so you can get it FAST! Phoenix Phase Converters can get your phase converter from one of our warehouses to your door, residential or business address as fast as Next Day in most cases!

Our Customers Come Back

We guarantee here at Phoenix Phase Converters, you will always talk to a highly experience sales and tech support customer care, we are always available, and can answer any questions for you any time of the day or week.

Highest Standards - Quality

Two generations of hands-on experience. The 100 HP rotary phase converter - GP75NL features oversized components, cast iron frames, and totally enclosed fan cooled idler/generators. Built from years of customer real-world experiences, to last a lifetime of a maintenance free phase converter.

SECTION
DROP_ELEMENT_HERE

Phase Converter will Automatically Start when a load is detected, Factory Settings is set to 20 minutes after to shut down by itself when the load is gone, this works great for CNC machines, Air Compressor, A/C units, irrigation, and pumps, ect.

GPX Phase Converter

GPX Series

Cloud Based Controls via WIFI

GPX Series will allow for you to have total control of the phase converter with built in timers to turn the phase converter on and off with a 7 day scheduling, and 24 hour time setting. Also with a built-in energy monitor for the converter and everything connected to it. You can even control and monitor it from any device connected to the internet from anywhere in the world.

Single Phase 230 Volts input with 230 volts and 460 volts output, some equipment are only set to run on 460 volts 3 phase, while other machines can run on 230 volts 3 phase. this will allow you to use both even at the same time.  208 volt output also available. Ask about our LinkBox.

Sizing Guide            Call Our Team for help Sizing 800-417-6568

Click here to download the DataSheets

ModelEasyMediumHardVery HardResistive AmpsKVACNC Spindle MotorPrice
GP32.521.5141.61.5$624.36
GP53321.572.92.5789.51
GP77532.5114.53.51085.00
GP10855315651599.18
GP151087.552087.52057.23
GP201512107.52511102647.18
GP25201512103013102963.43
GP30252015103715153481.17
GP40302520155021204210.30
GP50403025206125255485.79
GP60504030257230306883.34
GP756050403010029.6358074.28
GP1007560504012237.35010465.37
GP120100756050148606013254.34
GP1501251007060162727016140.23

Built with quality and precision like no other.

At Phoenix Phase Converters we use custom made components that last a lifetime. The 100 HP rotary phase converter - GP100NL single phase to three phase converter with an oversized distribution block (the Start and Stop button with built-in contactor is optional).

Protect your investment

All Phoenix Phase Converters come with a NEMA 4 IP66 Enclosure, keep water, dust, oil out, works perfect for outdoors or indoors, especially great for wood working, metal working shops, or any dirty environments

Standard Features

See why TEFC vs ODP is better, the choice is easy.
